- Lumileds 3030 chips and Inventronic driver
- IP67 LED Module, IP66 complete fixture
Unit of Measure
Technical Specs
Brands |
N/A L.E.D. Rite, LLC |
Surge Protection (Built-in) |
N/A 10 kV |
Surge Protection (Optional) |
N/A 20 kV |

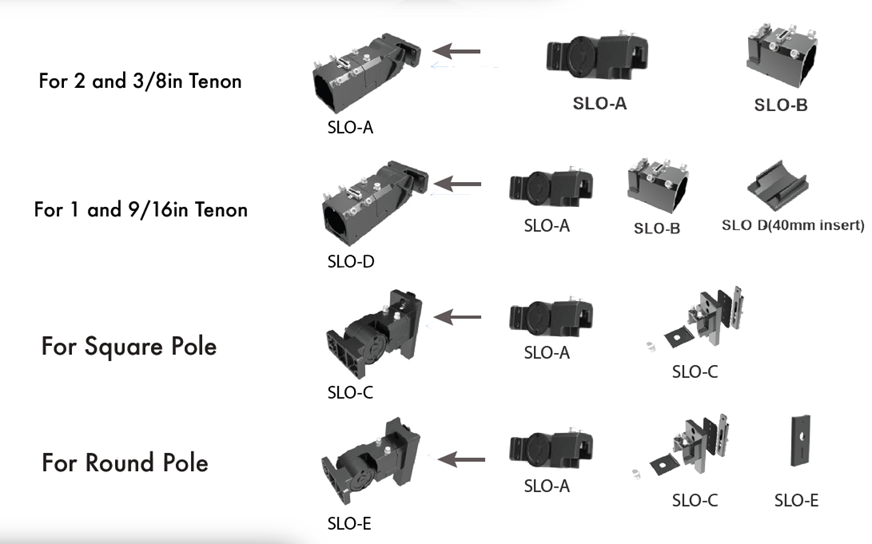

Installation |
N/A Arm One-Key Not Operation Arm One-Key Operation Arm-Round-Large Arm-Round-Medium Arm-Square-Large Arm-Square-Medium Slip Fitter Slip Fitter for One Trunnion |
Control |
N/A Motion Sensor Photocell Photocell + Motion Sensor Without Control Sensor |
Standard Voltage |
N/A 0 to 10 V |

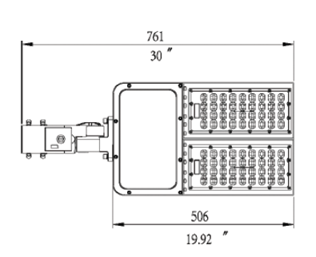

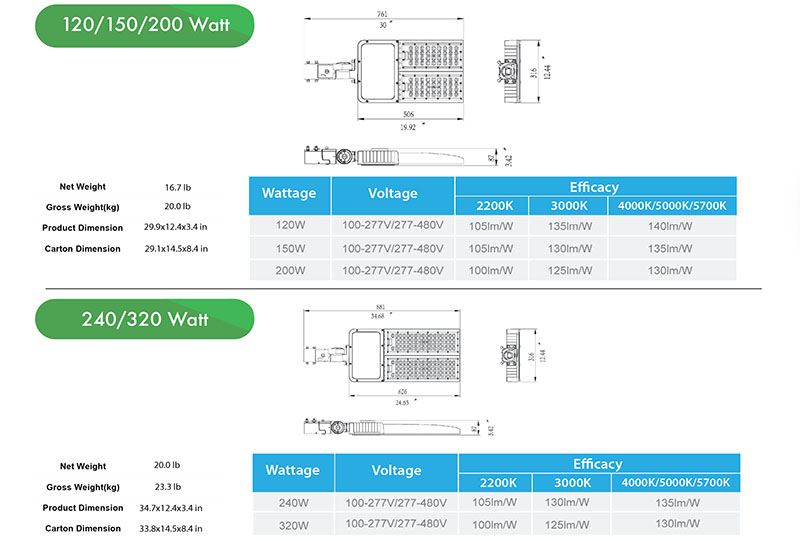

Product Dimension for 120/150/200 Watt (W) Rated Power |
N/A 29.9 x 12.4 x 3.4 in |
Carton Dimension for 120/150/200 Watt (W) Rated Power |
N/A 29.1 x 14.5 x 8.4 in |
Net Weight for 120/150/200 Watt (W) Power Consumption |
N/A 16.7 lb |
Gross Weight for 120/150/200 Watt (W) Power Consumption |
N/A 20.0 lb |
Product Dimension for 240/320 Watt (W) Rated Power |
N/A 34.7 x 12.4 x 3.4 in |
Carton Dimension for 240/320 Watt (W) Rated Power |
N/A 33.8 x 14.5 x 8.4 in |
Net Weight for 240/320 Watt (W) Power Consumption |
N/A 20.0 lb |
Gross Weight for 240/320 Watt (W) Power Consumption |
N/A 23.3 lb |
Technical Parameters
Wattage |
N/A 120 W150 W200 W240 W320 W |
Alternating Current (AC) Voltage |
N/A 120 to 277 V277 to 480 V |
Power Factor (PF) |
N/A 0.9 |
Life Span |
N/A 50,000 hours |
Efficacy |
N/A 130 lm/W |
Correlated Color Temperature (CCT) |
N/A 3000 K4000 K5000 K |
Color Rendering Index (CRI) |
N/A ≥ 70 |
Operating Temperature |
N/A -40 to 50 ºC |
Ingress Protection (IP) Rating for Light-Emitting Diode (LED) Module |
N/A Ingress Protection (IP67) |
Ingress Protection (IP) Rating for Fixture |
N/A Ingress Protection (IP66) |
Light-Emitting Diode (LED) |
N/A Lumileds |
Certifications |
N/A DesignLights Consortium (DLC) Listed Electrical Testing Laboratories (ETL) Underwriters Laboratories (UL) Listed Certified for both Canada (c) and United States (us) Safety Standards (cULus) US designed & assembled, UL certified and DLC Prime 4.2 listed high performance. |
Photocell |
N/A Optional |
Motion Sensor |
N/A Optional |
Optics |
N/A Type 2 Type 3 Type 4 Type 5 |
Finish |
N/A Black Dark Bronze Gray White |
